Injection Molds
Custom Injection Molds for Production
Explore injection mold configurations, specialized tooling and molding processes for production programs, supported by DFM, mold trials, dimensional validation and export tooling documentation.
Core Mold Types
Core Injection Mold Configurations
Select the mold configuration around part geometry, production volume, cavity strategy, material and receiving machine requirements.
Precision Injection Molds
Tooling for plastic parts with demanding dimensional, fit and repeatability requirements, supported by controlled machining and dimensional validation.
Explore

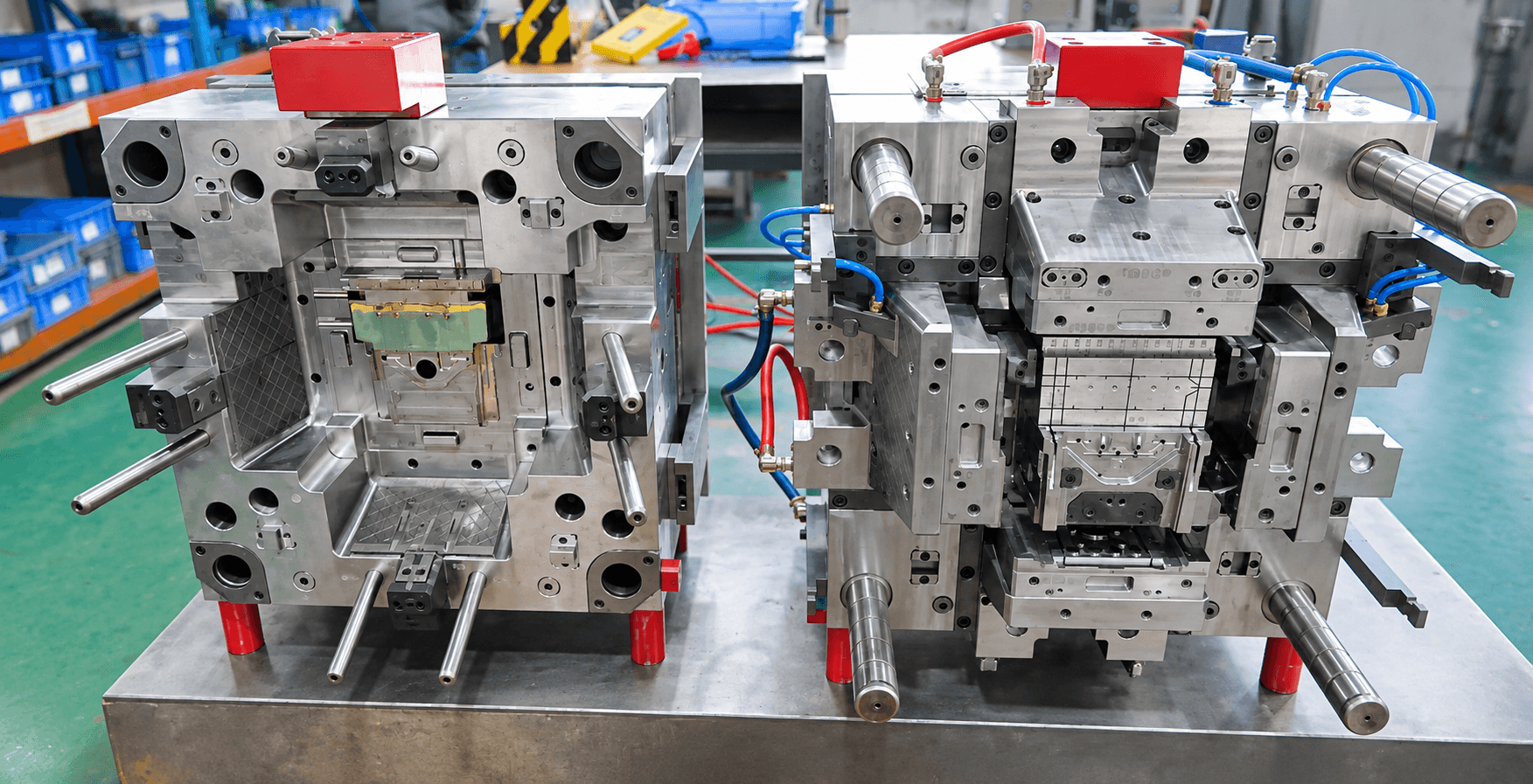

Complex Injection Molds
Injection molds using slides, lifters, side actions and other mechanisms for complex geometry, undercuts and challenging part release.
Explore
Multi-Cavity Injection Molds
Multiple identical cavities for repeat production, with attention to filling balance, cooling and cavity-to-cavity consistency.
Explore
Family Injection Molds
Different related parts produced in one mold when material, molding conditions and production ratios make family tooling practical.
Explore
Large Injection Molds
Tooling for large plastic housings, panels and structural components, with attention to cooling, warpage, handling and machine compatibility.
Explore

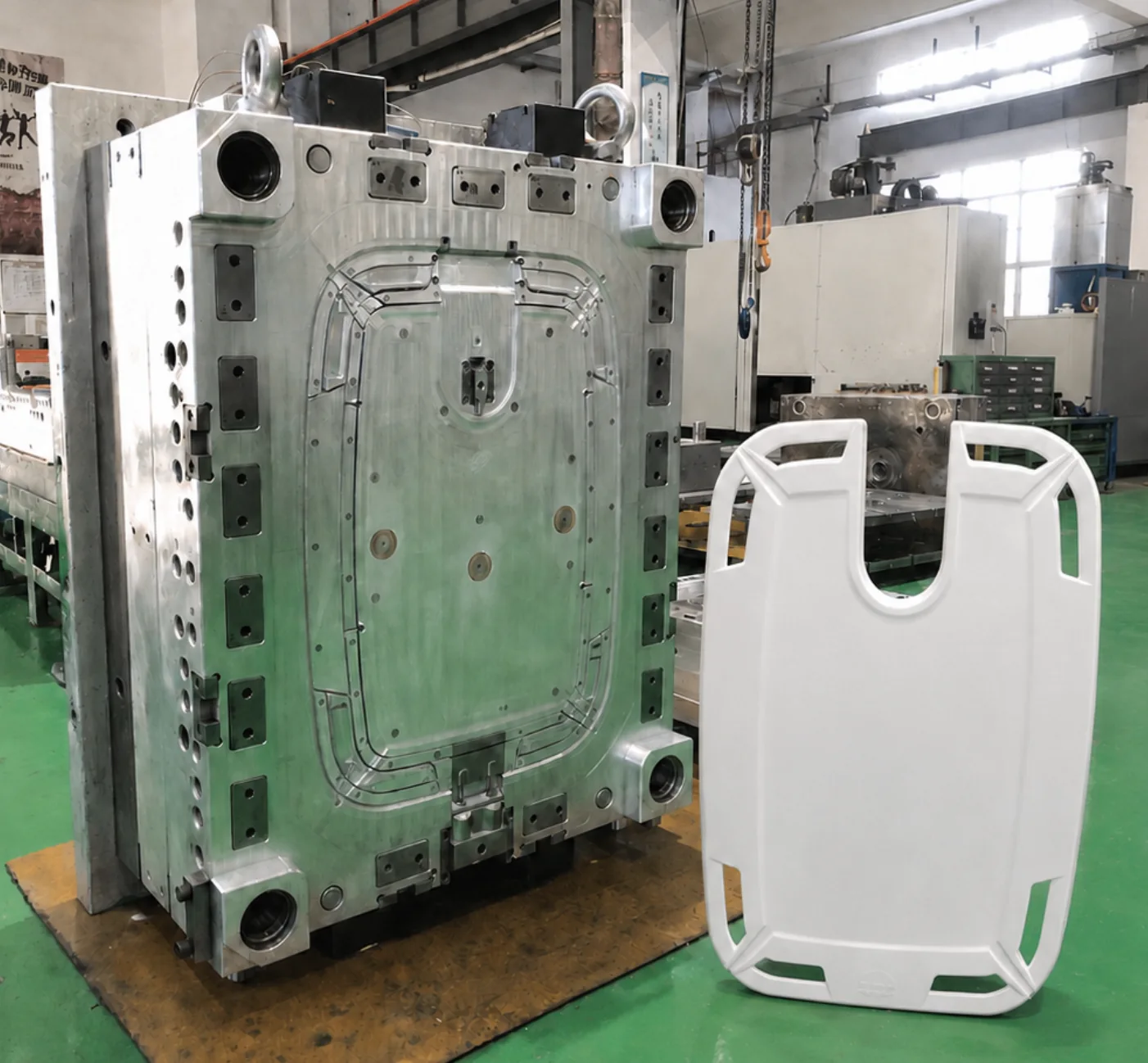

Prototype Injection Molds
Tooling for design validation, pilot builds and early production stages before full-scale manufacturing.
ExploreSpecialized Tooling
Specialized Tooling Capabilities
Special mold mechanisms, surface requirements and resin conditions are reviewed as part of the tooling concept.
Unscrewing Injection Molds
Tooling for molded internal or external threads that require controlled unscrewing before part ejection.
Explore

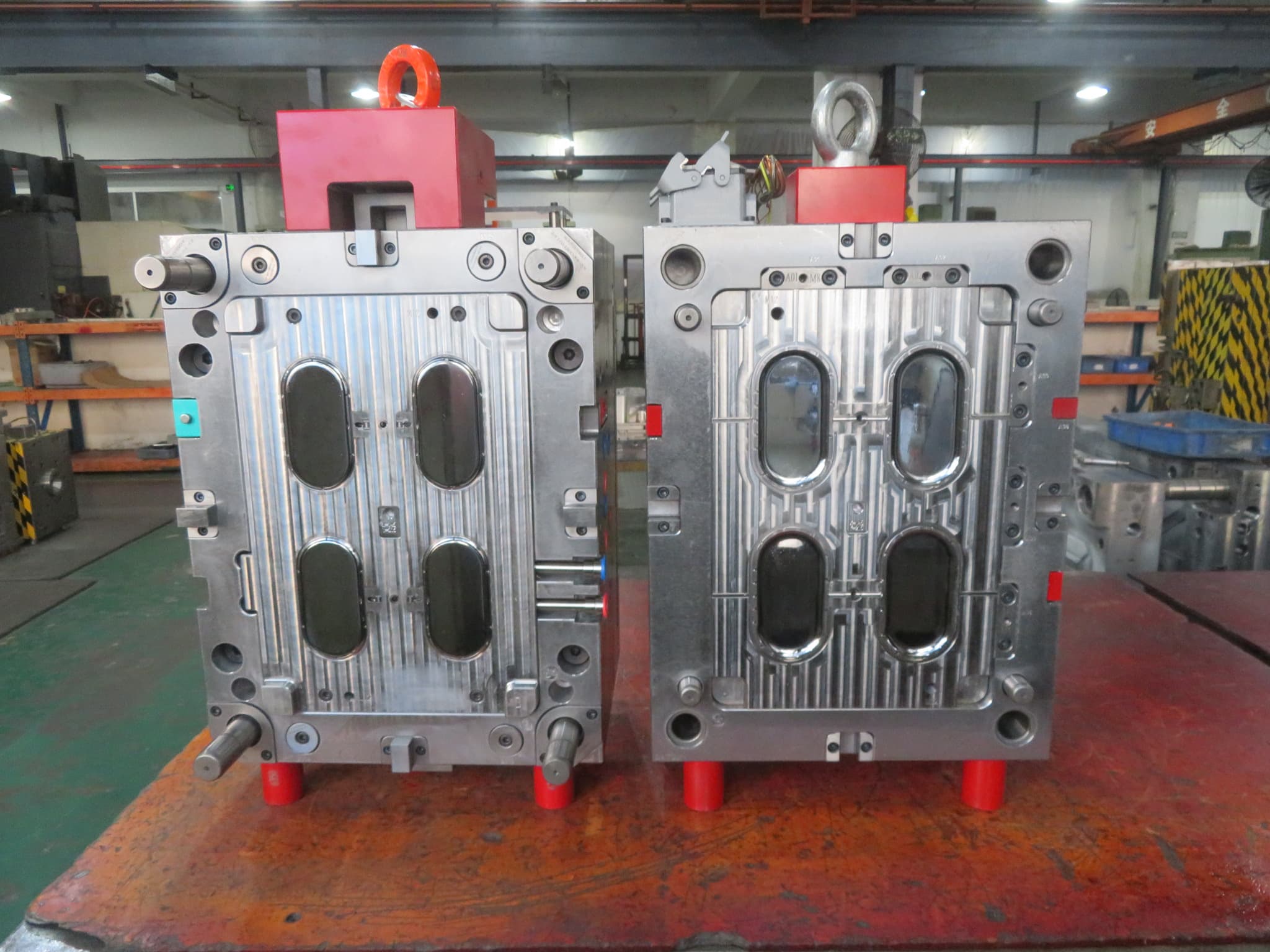

High-Gloss Injection Molds
Mirror-polished injection tooling for plastic housings, panels and visible parts with demanding surface appearance requirements.
Explore

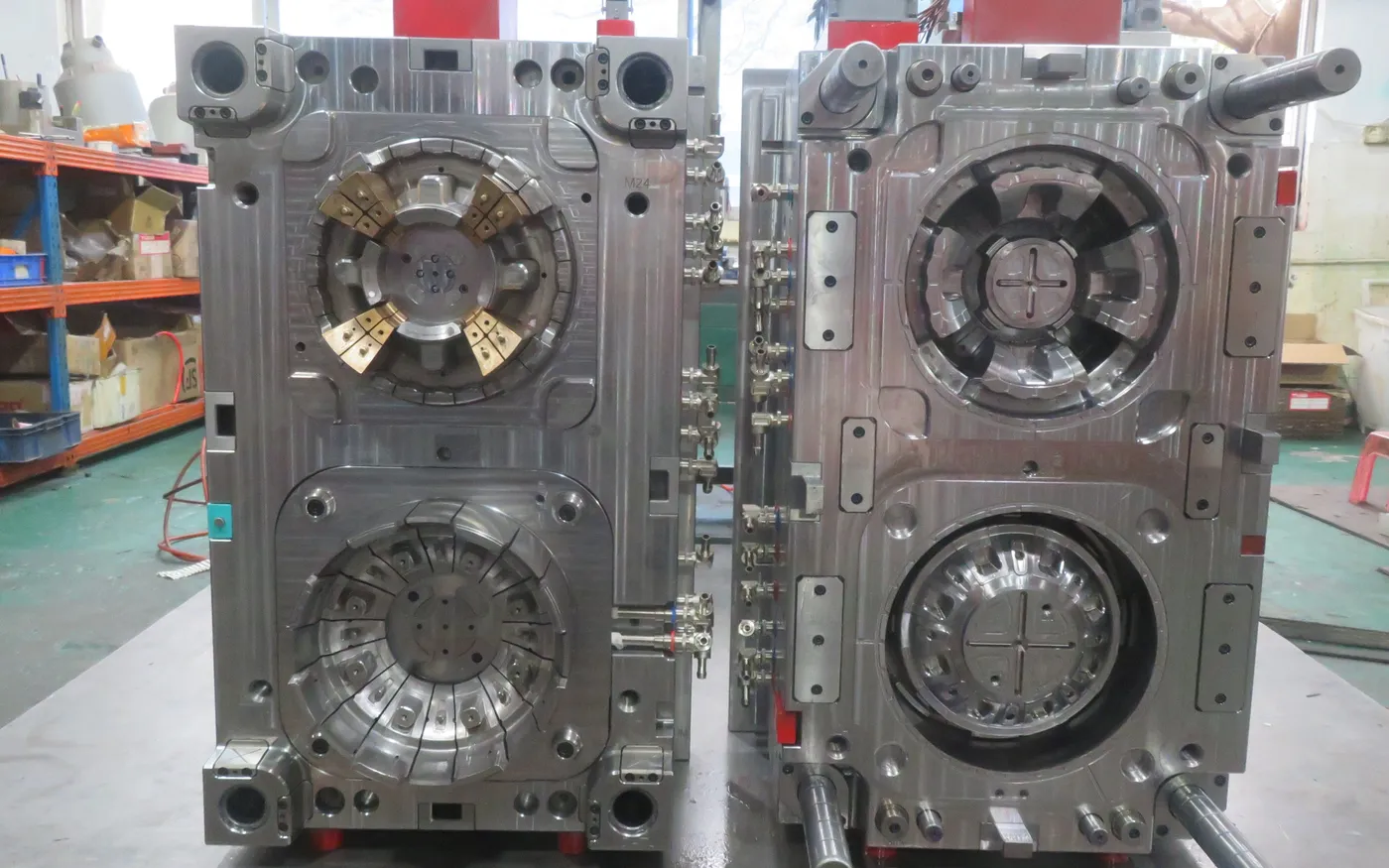

High-Temperature Injection Molds
Tooling designed for high-temperature engineering resins with suitable mold materials, temperature control and process considerations.
ExploreSpecialty Molding & Group Support
Specialty Molding & Supporting Tooling
Explore insert and two-shot injection molding, plus die casting tooling and metal-component support available through Arktech Group.

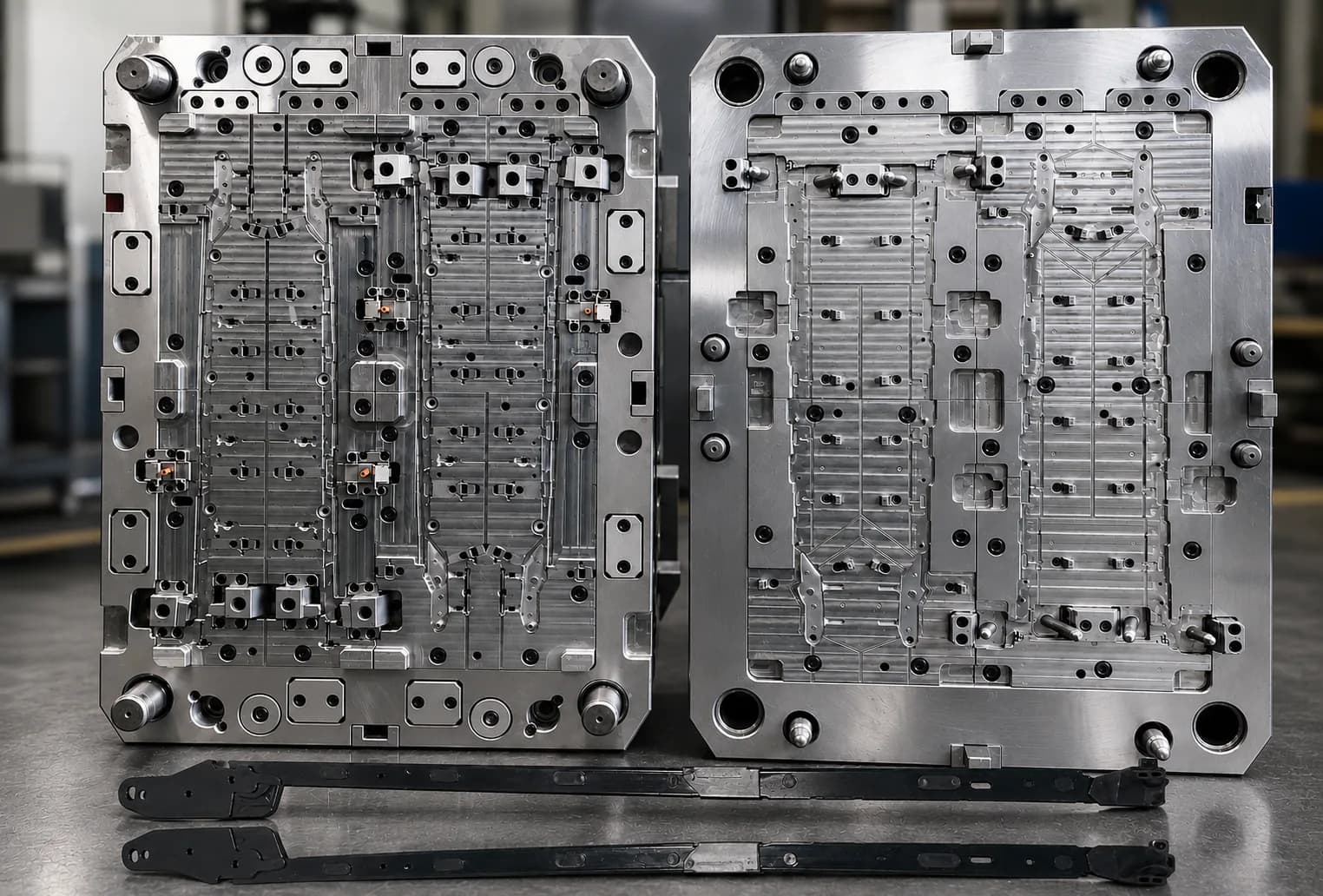

Insert Molding
Metal inserts, terminals, bushings or other components positioned and molded directly into the plastic part.
Explore
Two-Shot / 2K Molding
Two-material or two-color molding using coordinated first- and second-shot tooling and compatible machine configuration.
Explore
Die Casting Tooling
Die casting tooling and metal component support for aluminum and zinc projects, available through Arktech Group.
Explore Die Casting SupportReal Injection Mold Projects

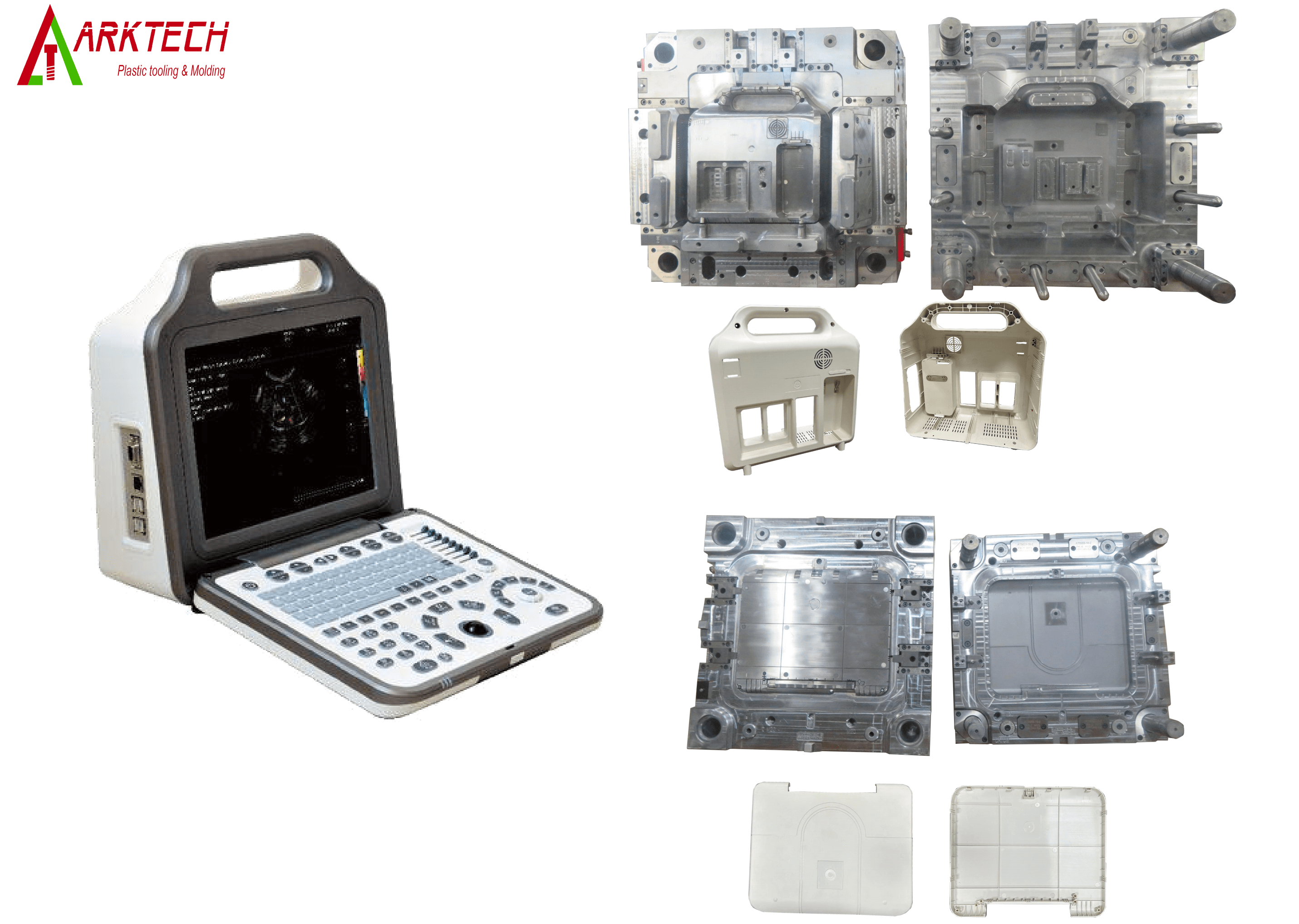

Completed Injection Molds Built by Arktech
Explore real injection molds manufactured for different part geometries, production volumes and molding requirements, including multi-cavity, complex, two-shot and unscrewing tooling.
Tooling Support
Tooling Support from Trial Through Mold Transfer
Keep mold types and tooling support distinct: these pages cover validation, documentation, spare parts and preparation for customer production.
Mold Trial & Validation
Review mold trials, samples, molding parameters, dimensional results and correction status before release.
Explore →Tooling Documentation
Prepare project-specific drawings, BOM references, tooling records and validation information for handover.
Explore →Mold Spare Parts
Plan replacement inserts and identified tooling components for maintenance and export-tooling support.
Explore →Export Tooling & Mold Transfer
Coordinate validation, documentation, spare parts, packing preparation and technical handover.
Explore →Selected Resources
Engineering Guidance for Tooling Decisions
Injection Mold Design Guidelines
Review the design decisions that influence mold structure, release and maintainability.
Read Resource →Mold Trial & Validation
See how mold trials, samples, dimensional inspection and engineering corrections support approval.
Read Resource →Engineering Plastics Guide
Compare material-performance and molding considerations before resin and tooling decisions are released.
Read Resource →FAQ
Injection Mold Purchasing FAQs
How do you choose between multi-cavity and family molds?
A multi-cavity mold produces identical parts, while a family mold produces different related parts. The practical choice depends on demand ratio, part size, material, filling balance, cooling and production planning.
When is an unscrewing mold required?
Unscrewing tooling is considered when molded threads cannot be released reliably by straight ejection, part deformation or a simpler mold action.
Can Arktech support hot runner and valve-gate tooling?
Hot runner and valve-gate options can be evaluated according to resin, part geometry, cavity layout, gate requirements and the receiving production environment.
What information is needed for a DFM and tooling quotation?
CAD data, drawings, resin, expected volume, finish, critical dimensions, receiving machine information and any customer tooling standards help define the tooling direction.
Can Arktech support mold trials and dimensional validation before export?
Yes. Project support can include mold trials, process parameter records, sample review, dimensional inspection, correction actions and agreed approval documentation before shipment.
Start Your Tooling Review
Discuss Your Injection Mold Project
Upload your CAD data and project requirements for DFM review, tooling discussion and quotation.
