Dimensional Inspection
Recorded results for agreed drawing characteristics and critical dimensions.
QUALITY & DOCUMENTATION
Injection Mold Quality Documentation & Inspection Records
Review inspection results, trial records and project-specific quality documentation for injection molds and molded parts, according to the agreed project scope.
PROJECT-SPECIFIC SCOPE
What Quality Records Can Be Included
The documentation scope is agreed around the project, customer requirements and relevant inspection or validation stages.
Trial & Process Records
Trial findings, sample status and recorded molding conditions where applicable.
Material & Tooling Quality Records
Specified material, steel or tooling inspection records where available and agreed.
Correction & Confirmation
Open items, agreed corrective actions and confirmation records where applicable.
Material and tooling records may include steel / material identification records, specified certificates where available and agreed, and heat-treatment records where applicable.
Where findings require action, open items and agreed corrections can be recorded for review before confirmation or the next project step.
Records are generated at the relevant project stages; availability and format depend on the agreed scope.
INSPECTION EVIDENCE
Dimensional Inspection & Sample Evidence
Inspection results are linked to the customer drawing and agreed inspection scope so engineering teams can review critical dimensions, sample condition and open items.
Typical report structure
- Drawing reference
- The drawing characteristic linked to the inspected result.
- Nominal dimension and tolerance
- The specified target and agreed acceptance range.
- Measured result
- The value recorded for the inspected sample.
- Pass / Fail status
- The result against the agreed drawing requirement.
- Measurement method
- The project-specific method recorded for the characteristic.
- Inspection date / sample stage
- The date or relevant sample stage connected to the result.
Report scope and measurement methods are agreed according to drawing characteristics and project requirements.
- Critical dimensions
- Appearance and molding condition
- Assembly / fit where required
- Drawing-based review

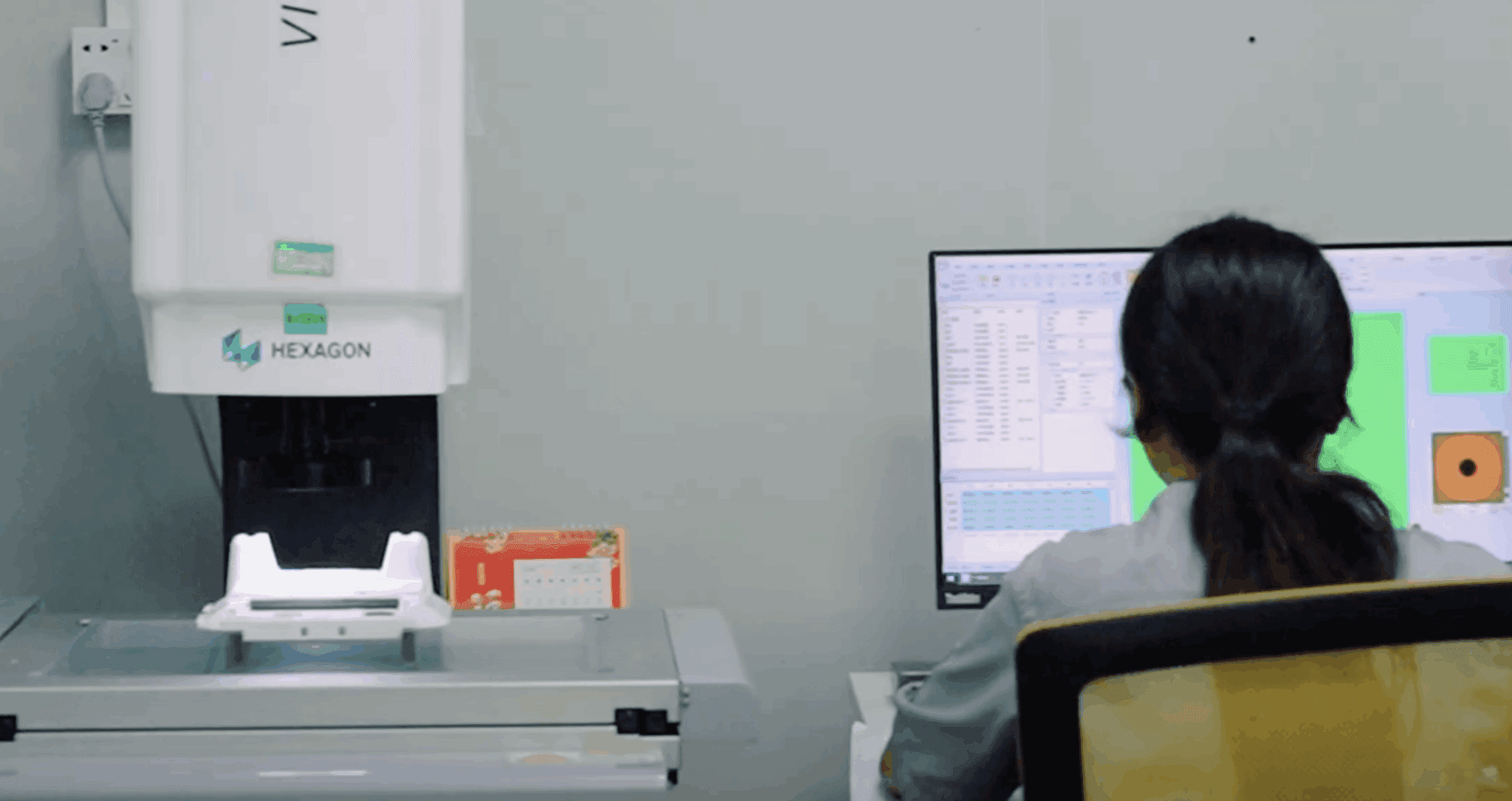

The report and inspection image illustrate available record and inspection contexts; they are not presented as evidence from the same project.
Inspection Video

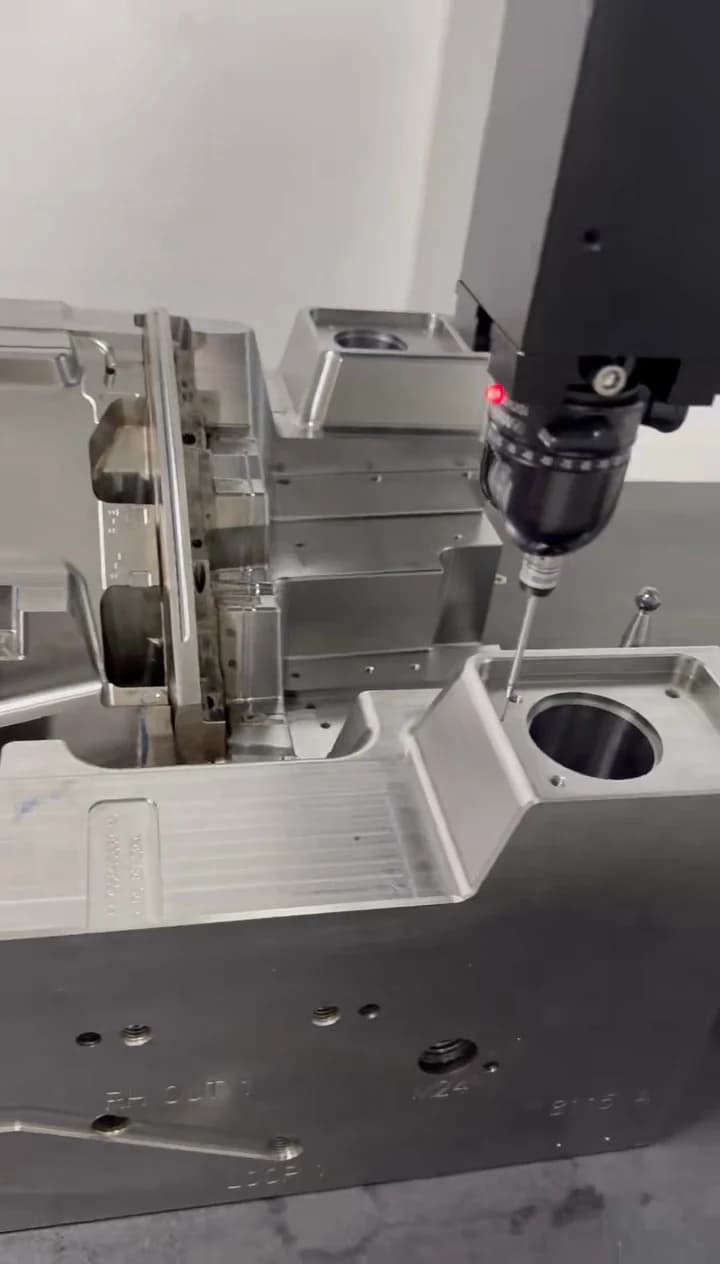

Mold Insert CMM Inspection
A view of mold-insert dimensional inspection using CMM equipment.
The video shows the component and probe movement only; no measurement result or tolerance is asserted.

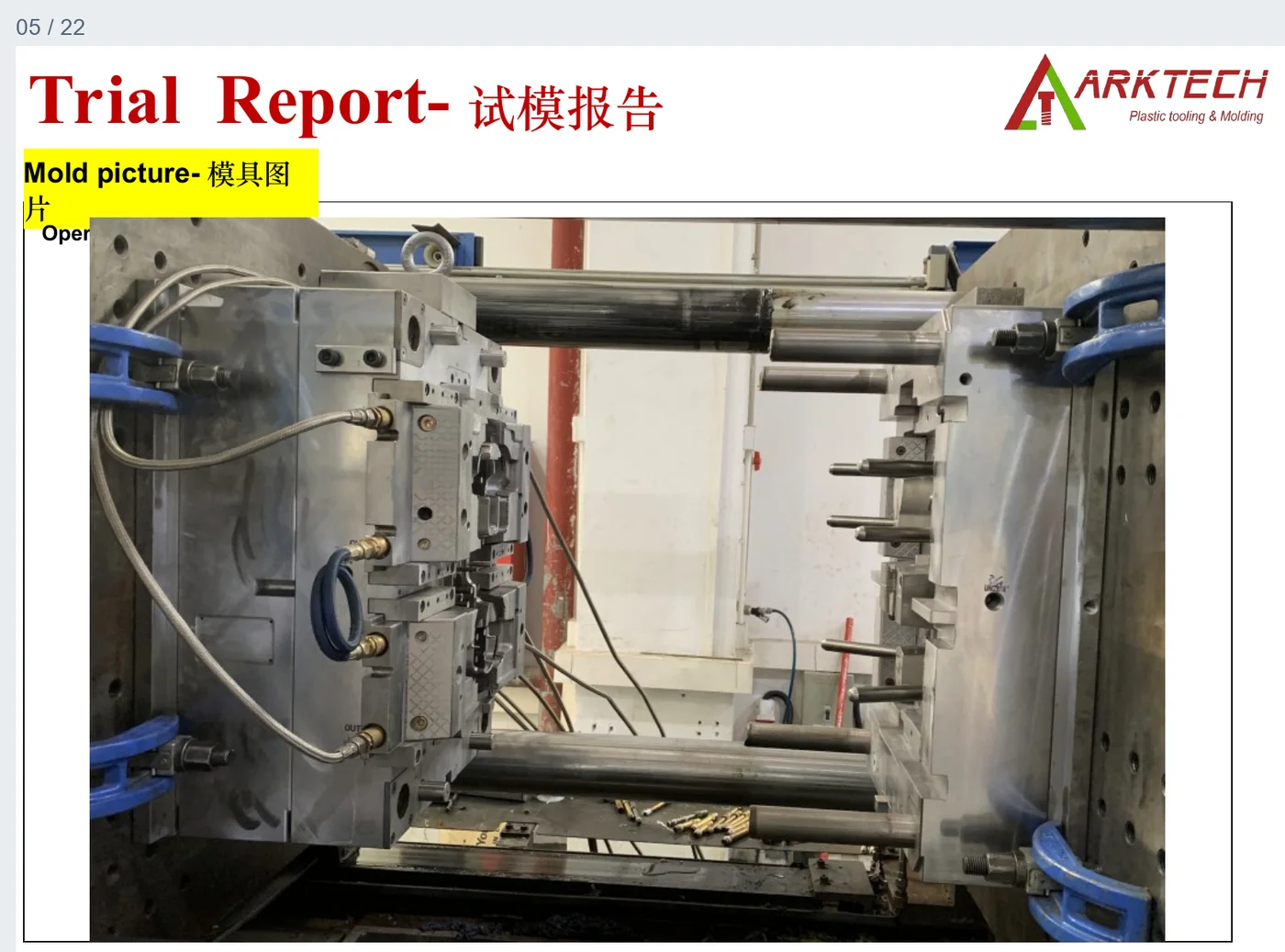

MOLD TRIAL RECORDS
Trial & Process Records
Records generated during mold trials can document molding conditions, sample status and engineering findings for customer review.
Recorded molding conditions provide a reference for trial comparison and technical handover. They do not guarantee identical performance on every receiving machine.
Explore Mold Trial & ValidationCUSTOMER REVIEW
Records for Customer Review & Handover
Quality records help customer teams review inspected characteristics, trial findings and agreed project status. Technical tooling files and transfer requirements are handled through the relevant tooling-support scope.
For molded-part production programs, inspection documentation is agreed around the project requirements.
Plastic Injection MoldingQUALITY RECORD FAQ
Quality Documentation Questions
Documentation is matched to the project scope rather than treated as one fixed package.
What quality records can be provided with an injection mold project?
Depending on the agreed scope, records can include dimensional inspection results, trial and process records, specified material or tooling records, and correction or confirmation items. Not every project requires every record.
Can dimensional inspection reports be included?
Yes. Dimensional inspection reporting can be included for agreed drawing characteristics and critical dimensions, with the inspection scope and measurement methods confirmed for the project.
Are molding parameters recorded during mold trials?
Molding conditions can be recorded during relevant trials where applicable. These records provide a reference for trial comparison and technical handover; they are not a guarantee of identical performance on every receiving machine.
Can material or steel records be provided?
Specified material, steel or heat-treatment records can be provided where they are available, applicable and included in the agreed project scope.
How do quality records support tooling handover?
They help customer teams review inspected characteristics, trial findings, open items and agreed project status. Technical tooling files and transfer requirements are handled through the relevant tooling-documentation and transfer scope.
PROJECT-SPECIFIC DOCUMENTATION
Discuss Your Quality Documentation Requirements
Share your drawings, critical dimensions and documentation requirements so we can review the appropriate inspection and record scope for your project.
