Machining mold bases, cavities, cores, inserts and electrodes from approved tooling data.
Export Injection Mold Manufacturing

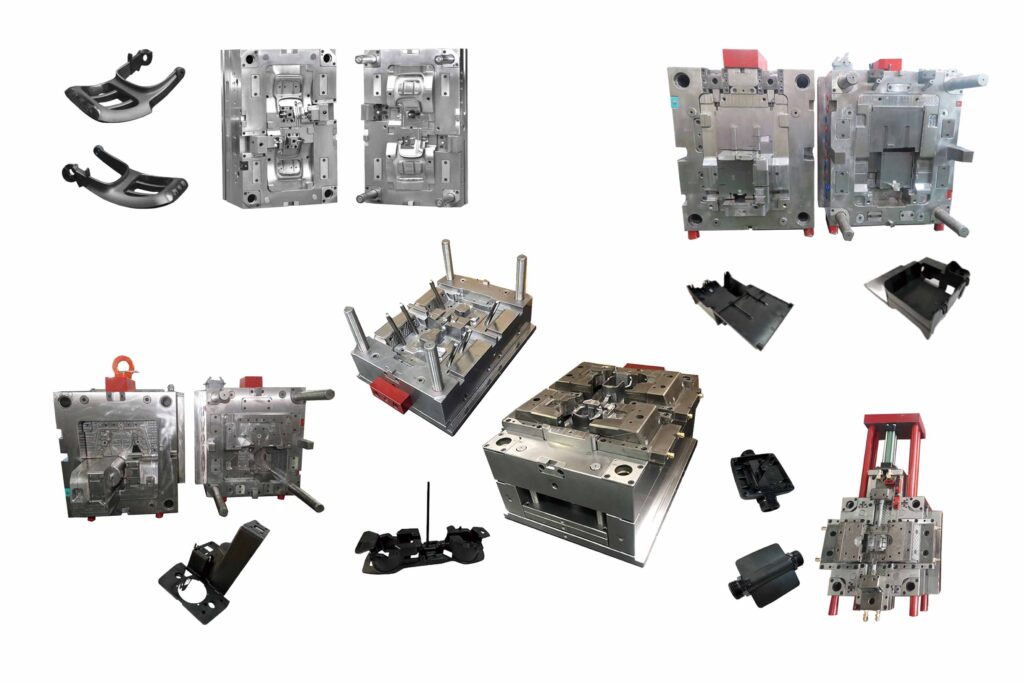

Export Injection Molds for Global Production
Arktech manufactures export-ready injection molds in China for product companies and injection molders worldwide, with DFM engineering, mold design, mold trials, validation and documented delivery before shipment.
DFM · Tooling · Mold Trial · Validation · Export Delivery
- Mold Size
- Up to 2,000 mm
- Tool Weight
- Up to 30 Tonnes
- Annual Capacity
- 200+ Molds / Year
Export Tooling Overview
Export-Ready Injection Molds for Overseas Production
Arktech builds injection molds for overseas production environments, with DFM review, mold design approval, tool manufacturing, mold trials, validation, documentation and export preparation coordinated around the customer's machine, tooling standards and production requirements.
The goal is not only to produce acceptable samples, but to deliver tooling that can be installed, maintained and used reliably after shipment.
Machine & Interface CompatibilityMold dimensions, clamping requirements, connections and machine interface are reviewed for the receiving production environment.Mold Trial & ValidationTooling is trialed, corrected and validated before shipment based on approved samples and project requirements.Export PreparationFinal mold inspection, protection, packing and shipment preparation are completed before delivery.
Tooling Documentation for Handover
Agreed tooling files, validation records and spare-parts information are prepared to support installation and maintenance after delivery.
- Tooling Drawings & Data
- Trial & Inspection Records
- Spare Parts Information
- Packing Records
Need molded parts after tooling approval?
Core Toolmaking Capabilities
Injection Mold Manufacturing Capabilities
From approved mold designs, Arktech machines, fits and assembles mold components into complete production tooling, ready for inspection and mold trials.
EDM & Wire Cutting
Producing detailed features, deep ribs, slots and tooling geometry where required.
Mold Fitting & Assembly
Fitting inserts, shut-offs and moving mechanisms, then assembling the complete mold.
Surface Finishing & Build Checks
Finishing specified molding surfaces and checking cooling, ejection and mechanism operation before trial.
Engineering to Manufacturing
From Engineering Approval to Toolmaking
Engineering decisions and mold design are reviewed before steel cutting. Approved tooling data then moves into steel preparation, machining, fitting and assembly.
Mold Manufacturing Process
From Approved Mold Design to Finished Tooling
Arktech builds production tooling from approved mold designs through steel preparation, machining, fitting, assembly and mold trials.
- 01
Steel & Mold Base Preparation
Prepare mold steel, bases and inserts against the approved tooling specification.
- 02
CNC Machining
Machine cavities, cores, inserts, electrodes and mold components from released tooling data.
- 03
EDM & Wire Cutting
Complete detailed features, ribs, slots and tooling geometry where required.
- 04
Fitting & Surface Finishing
Fit components and shut-offs, and finish specified molding surfaces.
- 05
Mold Assembly & Build Checks
Assemble mold components and check mechanisms, cooling connections and ejection before trial.
- 06
Mold Trial & Approval
Run mold trials, review samples and inspection results, and complete required corrections before approval.
Tooling Types
Injection Mold Types & Supporting Tooling
Explore eight injection mold configurations, with supporting die casting tooling available through Arktech Group.
Complex Injection Molds
For parts with undercuts and coordinated mold actions.
Multi-Cavity Injection Molds
For producing multiple parts per molding cycle.
Hot Runner Molds
For tooling requirements using hot runner systems.

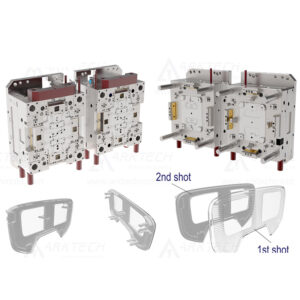

Two-Shot / 2K Molds
For two-material or two-color plastic components.
Insert Molding Tools
For molding plastic around prepared inserts.
Unscrewing Molds
For threaded parts requiring controlled release.
Large Injection Molds
For large housings, panels and structural parts.
Prototype Injection Molds
For engineering samples and early tooling validation.
Supporting Tooling · Arktech Group
Die Casting Dies
Tooling for metal die casting projects, supported by Arktech Group.
Toolroom Capabilities

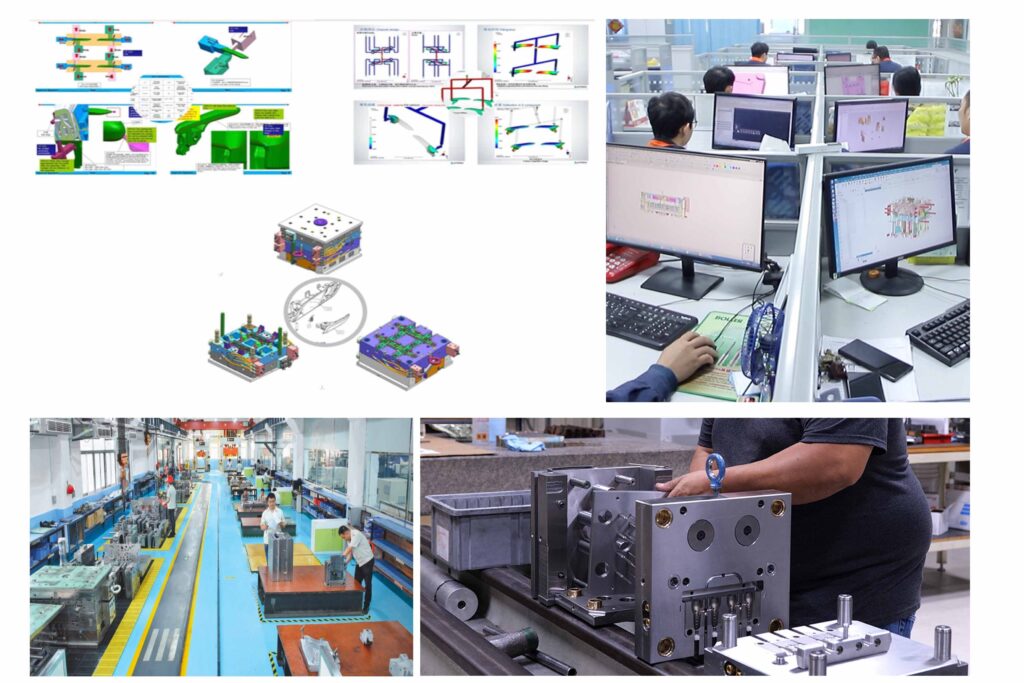

Inside Arktech’s Injection Mold Toolroom
See the facilities and team supporting machining, fitting and assembly of production injection molds.
Precision Machining
Manufacturing cavities, cores, inserts and mold components from approved tooling data.
EDM & Wire Cutting
Completing detailed features and complex tooling geometry where required.
Mold Fitting & Finishing
Fitting components, adjusting shut-offs and finishing specified surfaces.
Assembly & Trial Preparation
Checking mold mechanisms, cooling and ejection before trial.
Need tooling built for your production requirements?
Request Tooling QuoteExport Tooling Requirements
Built to Your Tooling & Machine Requirements
Mold construction is aligned with your approved tooling specification, receiving machine and maintenance requirements.
Tooling Standards & Materials
Approved steel specifications and customer component standards, including DME / HASCO-compatible components when specified.
Machine & Utility Interfaces
Mold dimensions, mounting, cooling and hot runner connections matched to the receiving production setup.
Mechanisms & Replaceable Components
Agreed sliders, lifters, unscrewing mechanisms and replaceable inserts built to the approved mold design.
Spare Parts & Tooling Data
Agreed spare components and final tooling information prepared for maintenance and handover.
Mold Trial & Validation
Tested Before Tooling Approval
Completed molds undergo trials, sample inspection and required corrections before approval. Trial reports, dimensional results and process parameters document the validation work.
FAQ
Export Tooling FAQs
What information is needed for a tooling quotation?
Please share your CAD files, available 2D drawings, resin requirements, expected production volume, receiving machine information and tooling standards. If some details are not yet available, identify the open items so they can be reviewed during quotation.
Can you build molds for our injection molding machine and tooling standards?
Tooling requirements are reviewed against the machine information and mold specification you provide, including mounting, utility connections, component standards and steel requirements. Compatibility and any open requirements should be confirmed before manufacturing release.
When does the mold manufacturing lead time start?
The quotation should identify the agreed start milestone and what the schedule covers, such as first trial or completed tooling. Design approval, tooling complexity, changes and approval requirements can affect the project schedule.
How are molds trialed and approved before shipment?
Completed molds undergo trials and sample inspection, with required corrections and re-trials before approval. Trial records and inspection results support customer review against the agreed project requirements.
What documentation and spare parts can be supplied with the mold?
The handover package can include agreed tooling drawings, component information, trial and inspection records, and spare-parts information. Spare inserts and wear components are defined by the project scope rather than automatically included with every mold.
Start Your Export Mold Project
Start Your Export Injection Mold Project
Send your CAD files, drawings, resin requirements, customer machine information and tooling standards. Arktech will review the mold manufacturing requirements and prepare a tooling quotation.
